The Fundamental Need for Voltage Conversion

Bridging the Electrical Divide

The need to convert 380V to 220V often pops up when there's a mismatch between the electricity coming into your building and what your machines are built to handle. Many places, especially in parts of Europe and Asia, use 380V or even 400V as their standard industrial power. But here's the twist: a huge amount of machinery, particularly imported gear or older models, might be specifically rated for 220V operation.

This difference isn't just a small inconvenience; it's a major roadblock to getting things done. Imagine trying to plug a 220V appliance directly into a 380V outlet—it's a recipe for disaster. You'd almost certainly cause severe damage to the machine, perhaps beyond repair, and create some pretty serious safety hazards. The voltage gap is simply too wide, risking overloaded circuits, burnt-out motors, and even potential fires.

Beyond simply making things compatible, proper voltage conversion actually ensures your equipment runs at its best and sticks around longer. When machinery operates at its intended voltage, it puts less stress on its internal parts, wastes less energy, and avoids wearing out prematurely. It's not just about making it work; it's about making it work well, reliably, and most importantly, safely.

Plus, sometimes you'll find homes in areas where 380V three-phase is supplied to the building, but all the internal wiring and everyday appliances are designed for 220V single-phase. In these situations, converting the main incoming supply becomes absolutely essential for daily life and for keeping your household electronics running without a hitch.

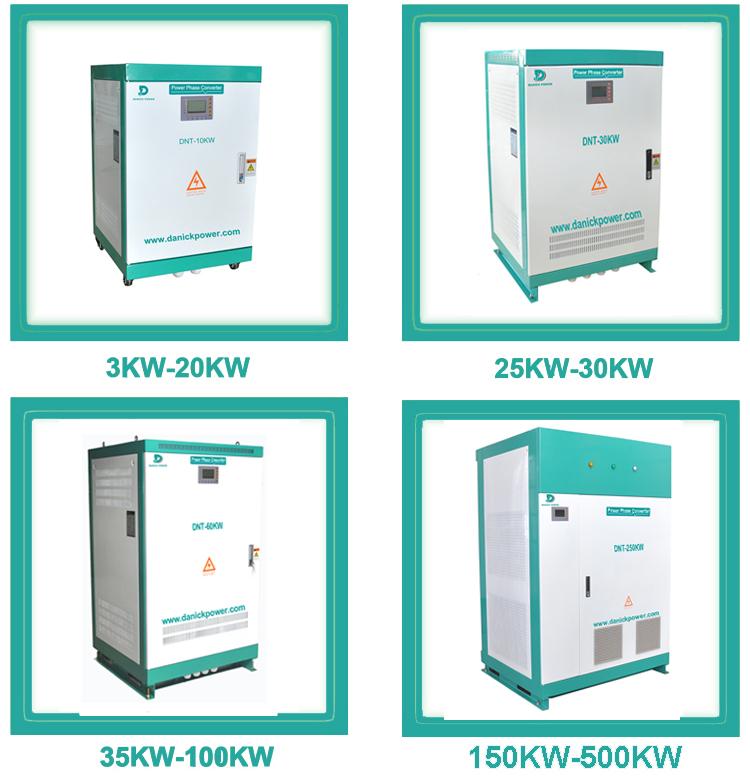

3 Phase 220V 60Hz To 380V 50hz Voltage Converter DNT20KW

Primary Methods for Voltage Conversion

Exploring Your Conversion Arsenal

When you're looking to convert 380V to 220V, you've got a few solid options, each with its own perks and ideal scenarios. The go-to solution, and often the most straightforward, involves using **transformers**. These are clever electrical devices that shift electrical energy from one circuit to another, changing the voltage level without messing with the frequency.

Specifically for our task, we'll be looking at a **step-down transformer**. Think of it like this: it has more turns of wire on its incoming side (the primary) than on its outgoing side (the secondary), which effectively brings that 380V down to a neat 220V. You can find these as single-phase or three-phase units, depending on whether your 220V equipment needs single-phase or three-phase power. For bigger industrial applications with three-phase motors, a three-phase transformer is usually the answer.

Another approach, though less common for a full-scale 380V to 220V conversion across all phases, involves using **variable frequency drives (VFDs)** or **phase converters** for specific motor applications. While VFDs are mainly for controlling motor speed and power, some advanced ones can handle a bit of voltage transformation within certain limits, especially if you need 220V for a three-phase motor coming from a 380V three-phase supply. However, for a general power conversion, transformers are definitely the most direct and efficient choice.

If you only need a smaller amount of 220V single-phase power from a 380V three-phase source, a single-phase transformer can be wired between two of the 380V phases, or even between one phase and the neutral (if a neutral line is available and your system allows it). Just a word of caution here: it's absolutely vital to get an experienced electrician to handle these connections. Wiring it incorrectly can lead to imbalances and some serious safety risks.

Rewiring A 3 Phase Motor To Delta (380v 230V Conversion) YouTube

Safety Protocols: Non-Negotiable When Handling High Voltage

Prioritizing Your Well-being and Equipment Protection

Let's be absolutely clear: working with high voltage electricity, especially 380V, demands your full and undivided attention to **safety**. Cutting corners here can lead to severe injury, nasty shocks, or even fatal accidents. Before you even think about starting any voltage conversion project, make absolutely certain that all power to your work area is completely off and that you've double-checked it with the right testing gear to confirm it's truly dead.

Always, always wear your **personal protective equipment (PPE)**. This includes insulated gloves, safety glasses, and sturdy, non-conductive shoes. This isn't just a suggestion; it's your crucial shield between you and potentially deadly currents. Even a tiny moment of distraction or an unexpected spark can have devastating consequences, so treat every single connection with the utmost respect.

What's more, every single wire and component you use in your conversion setup must be properly rated for the voltage and current they'll be handling. Using wires or parts that are too small is a recipe for disaster—they can overheat, their insulation can break down, and ultimately, you're looking at a potential electrical fire. Always pore over the specifications and ensure every piece of your puzzle can comfortably handle the demands placed upon it, with a generous safety margin.

And here's a golden rule: if you're not a certified electrician or you don't have solid experience dealing with high voltage systems, please, please get professional help. Electrical work is definitely not a DIY project for the inexperienced. A certified electrician will ensure your conversion is done safely, effectively, and perfectly in line with all the relevant electrical codes and regulations, keeping both you and your valuable equipment out of harm's way.

Branchement électrique Comment Passer Du 380v Au 220v

Calculating Transformer Requirements

Sizing Up Your Conversion Solution

Figuring out the right size and kind of transformer is absolutely key for a conversion that's both successful and efficient. This isn't a "one-size-fits-all" kind of deal; it hinges entirely on how much power your 220V equipment will actually need. The most important number to consider here is the **total power (in VA or kVA)** that all your 220V gear will draw.

To crunch those numbers, you'll add up the VA (Volt-Amperes) or wattage of every single 220V device you plan to connect to the transformer's output. If you only have wattage, you'll need to divide it by the power factor (usually around 0.8 for things with motors, or 1.0 for simple heaters) to get your VA. And here's a pro tip: always add a safety cushion of at least 20-25% to that calculated value. This helps account for those initial power surges (inrush currents) and gives you a little wiggle room for anything you might add later.

For example, let's say you've got a bunch of 220V equipment that together draws 5000 watts, and you're guessing a power factor of 0.8. Your required VA would be 5000 / 0.8 = 6250 VA. Now, toss in that 25% safety margin, and you'd be looking for a transformer rated for at least 7812.5 VA—which typically means an 8 kVA transformer.

Beyond just the VA rating, you'll also need to decide if you require a single-phase or three-phase output. If your 220V equipment is mostly individual single-phase appliances, a three-phase transformer with a "star" (Y) connection on the output side can deliver 220V from phase to neutral. However, if you're powering 220V three-phase motors, then you'll definitely need a three-phase step-down transformer, perhaps with a "delta" (Δ) or "star" (Y) connection on the output, to give you 220V from line to line. Always make sure the transformer's internal wiring matches what your equipment needs.

Autotransformer Wiring Diagram Circuit

Common Pitfalls and Troubleshooting Tips

Navigating Potential Roadblocks

Even with the best laid plans, voltage conversion projects can throw a few curveballs your way. A super common misstep is underestimating the total power draw, which leads to a transformer that's too small. The tell-tale signs? It'll overheat or keep tripping your circuit breakers. If you're seeing frequent trips or your transformer feels excessively hot, it's definitely time to recalculate your power needs.

Another frequent headache is incorrect wiring, especially when you're playing with three-phase systems. Getting the phase rotation wrong or messing up the grounding can cause your equipment to act up, lose efficiency, and create some serious safety risks. Always, always stick to the wiring diagrams like glue, and use a reliable multimeter to check all your connections before you even think about flipping the power switch.

Now, a little humming or buzzing from a transformer is often normal, but if it's excessively loud or sounds off, it could point to a problem like loose internal parts or an overloaded unit. If that noise is unusually strong, or worse, if you catch a whiff of something burning, cut the power immediately and figure out what's going on. When it comes to these kinds of signals, it's always better to be overly cautious.

Finally, remember that voltage conversion isn't just about the transformer itself. You've got to make sure all the wiring, circuit breakers, and outlets downstream are also perfectly rated for 220V and the current you expect. Overlooking these details can create weak points in your electrical setup, putting both safety and reliability at risk. And don't forget, regular checks and maintenance of your newly converted system can help nip potential issues in the bud before they blossom into bigger problems.

AC 220V Single Phase To 380V 3 Converter Motor Speed Inverter

Frequently Asked Questions (FAQ)

Your Conversion Queries Answered

Q: Can I just use a simple resistor to convert 380V to 220V?

A: Oh, absolutely not! Using a simple resistor for voltage conversion is incredibly inefficient and downright dangerous for anything but the tiniest of electrical loads. Resistors turn that extra voltage into heat, which means you're not only wasting a ton of energy but also creating extreme heat that could easily start a fire. When it comes to practical applications, a proper transformer is truly the only safe and sensible solution.

Q: Is it possible to convert single-phase 380V to single-phase 220V?

A: In most standard electrical setups, 380V typically comes as a three-phase supply. While you *can* technically get single-phase 220V from a 380V three-phase system using a single-phase transformer (by connecting it between one phase and the neutral, if available and allowed, or between two phases for a 220V phase-to-phase output on the secondary), a direct single-phase 380V supply is quite rare. Always double-check what kind of power you're actually getting into your building.

Q: How do I know if my 220V equipment needs single-phase or three-phase power?

A: Good question! The easiest way to tell is by checking the equipment's nameplate or its specifications manual. Look for phrases like "220V Single Phase" or "220V 3 Phase." Sometimes, you'll see symbols too: a single wavy line usually means AC single-phase, and three wavy lines indicate AC three-phase. Things like motors are often three-phase, while most of your everyday household appliances are single-phase. If you're ever unsure, the best bet is to check the manufacturer's instructions or simply call a qualified electrician.
